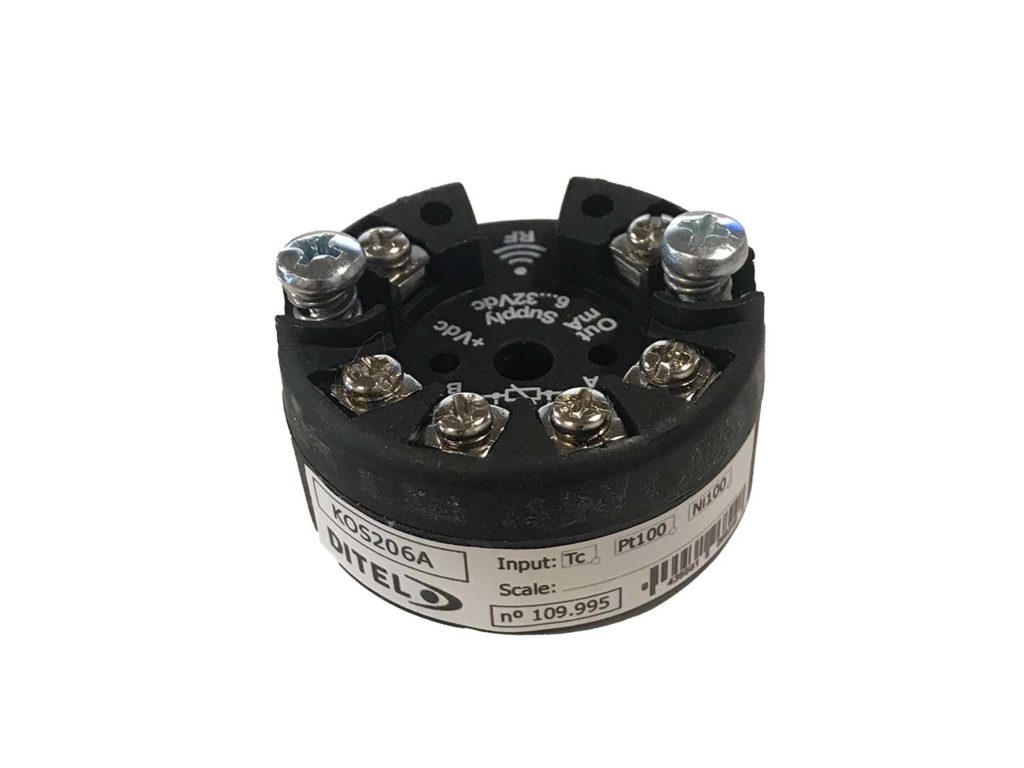

Isolator with 2-wire 4-20mA output (PASSIVE), for Thermocouple (J, K, S, R, T, E, N, B), 2-3-4-wire RTD (Pt100, Ni100) and mV sensors, for temperature measurement in industrial environments, with excellent EMC characteristics.
It allows remote transmission of temperature, safely and immunity to interference.
The output is isolated and linearized with temperature, with a high loop load capacity that allows a wide supply range from 6V to 32V (reverse polarity protected).
It has an intelligent adaptive filter to stabilize the signal.
Its reduced size, in encapsulated format and sealed with resin, provides great electrical, mechanical and environmental robustness.
It allows a very fast and simple configuration through a mobile APP, through wireless communication of the module with a smartphone. Also through PC software.
It has an internal data-logger that continuously records the temperature for later transfer to the computer or smartphone, and the data and configuration can be sent by email.
High precision through 16-bit A/D converter (<0.1ºC).
- WIRELESS PROGRAMMING (RFID)
- CONFIGURATION APP FROM MOBILE (NFC)
- MULTI-INPUT: THERMOCOUPLE, RTD and mV
- ISOLATED AND LINEARIZED
- WIDE POWER SUPPLY RANGE (6-32VDC)
- HIGH ACCURACY (16 BIT A/D CONVERTER)
- DATA LOGGER
