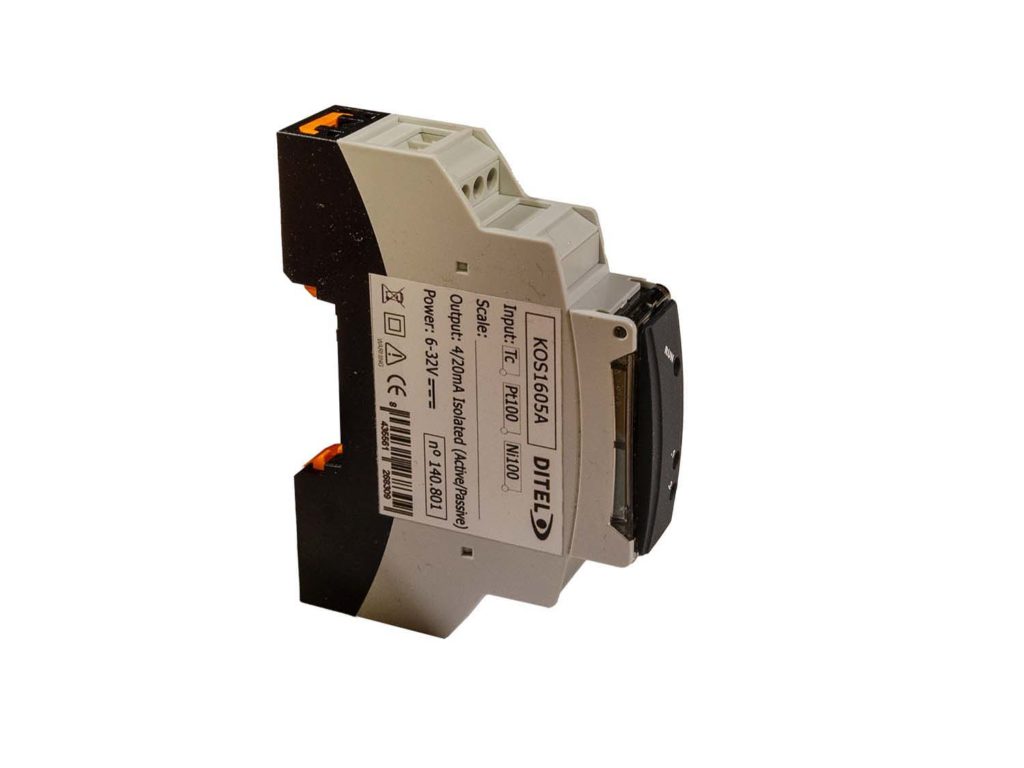

Isolator for DIN rail with 4-20mA output for Thermocouple sensors, RTD (Pt100, Ni100) with 2-3-4 wires for temperature measurement in industrial environments with excellent EMC characteristics.
It allows remote transmission of temperature, safely and immunity to interference.
The output is isolated and linearized with temperature, with high load capacity in the loop that allows a wide supply range from 6V to 32V DC (protected against polarity reversal).
The output connection can be made with 2 wires (passive) or 3 wires (Active).
It has an intelligent adaptive filter to stabilize the signal.
It allows a very fast and simple configuration through mobile APP, through wireless communication of the module with a smartphone. Configuration via PC software is also possible.
It has an internal data-logger that continuously records the temperature for later transfer to the computer or smartphone, and the data and configuration can be sent by email.
- WIRELESS PROGRAMMING (RFID)
- CONFIGURATION APP FROM MOBILE
- LED STATUS INDICATOR
- MULTI-INPUT
- HIGH ACCURACY (16 BIT A/D CONVERTER)
- DATA LOGGER
- ACTIVE / PASSIVE OUTPUT
- INPUT / OUTPUT INSULATION
- ERROR CORRECTION (OFFSET)
