Transmisor Cabezal 4-20mA (Pasivo) para RTD (Pt100, Pt1000, Ni100) KOS203PATransmisor Cabezal 4-20mA (Pasivo) para RTD (Pt100, Pt1000, Ni100) KOS203PA

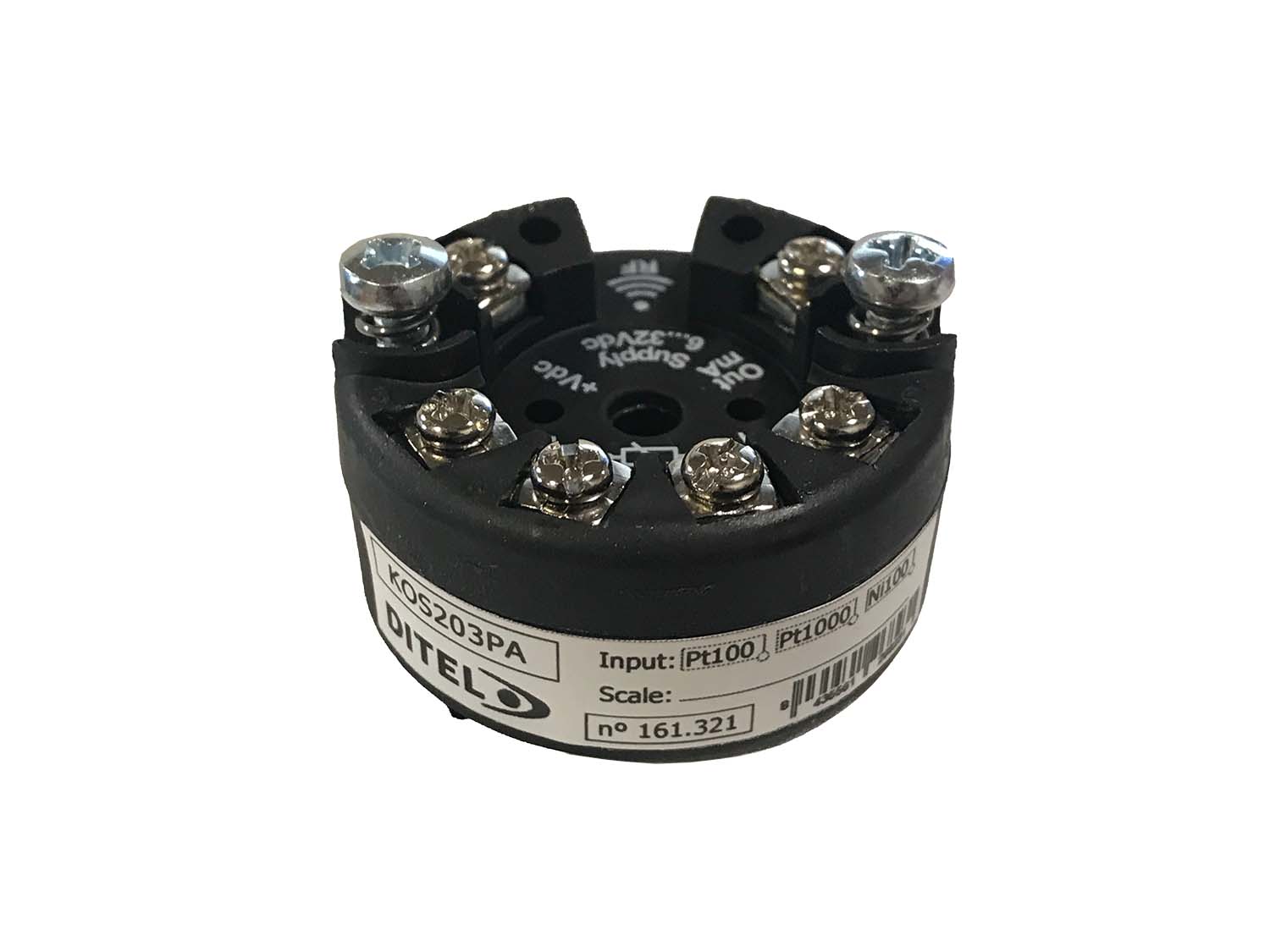

Converter In-Head 4-20mA (Passive) for RTD (Pt100, Pt1000, Ni100) KOS203PA

Converter In-Head 4-20mA (Passive) for RTD (Pt100, Pt1000, Ni100) KOS203PA

EAN: 8435561268231 SKU: KOS203PA Category:

Transmitter with 2-wire 4-20mA output (PASSIVE), for 2-3-4-wire Pt100, Pt1000 and Ni100 sensors, for temperature measurement in industrial environments, with excellent EMC characteristics.

It allows remote transmission of temperature safely and immunity to interference.

The output is linearized with temperature, with high load capacity in the loop that allows a wide supply range from 6V to 32VDC (reverse polarity protected).

It has an intelligent adaptive filter to stabilize the signal.

Its small size, in encapsulated format and sealed with resin, provides great electrical, mechanical and environmental robustness.

It allows a very fast and simple configuration through a mobile APP, through wireless communication of the module with a smartphone. Also through PC software.

It has an internal data-logger that continuously records the temperature for later transfer to the computer or smartphone, and the data and configuration can be sent by email.

  • WIRELESS PROGRAMMING (RFID)
  • CONFIGURATION APP FROM MOBILE (NFC)
  • HIGH LOAD CAPACITY (up to 900Ω)
  • WIDE POWER SUPPLY RANGE (6-32VDC)
  • HIGH ACCURACY (16 BIT A/D CONVERTER)
  • DATA LOGGER
  • FLOATING SUPPORT ON DIN B HEAD
  • ENCAPSULATED IN EPOXY RESIN
  • ERROR CORRECTION (OFFSET)
