DIN RAIL DOUBLE CONVERTER KOS1720

DIN RAIL DOUBLE CONVERTER KOS1720

EAN: 8435142714201 SKU: KOS1720 Category: Tags: ,

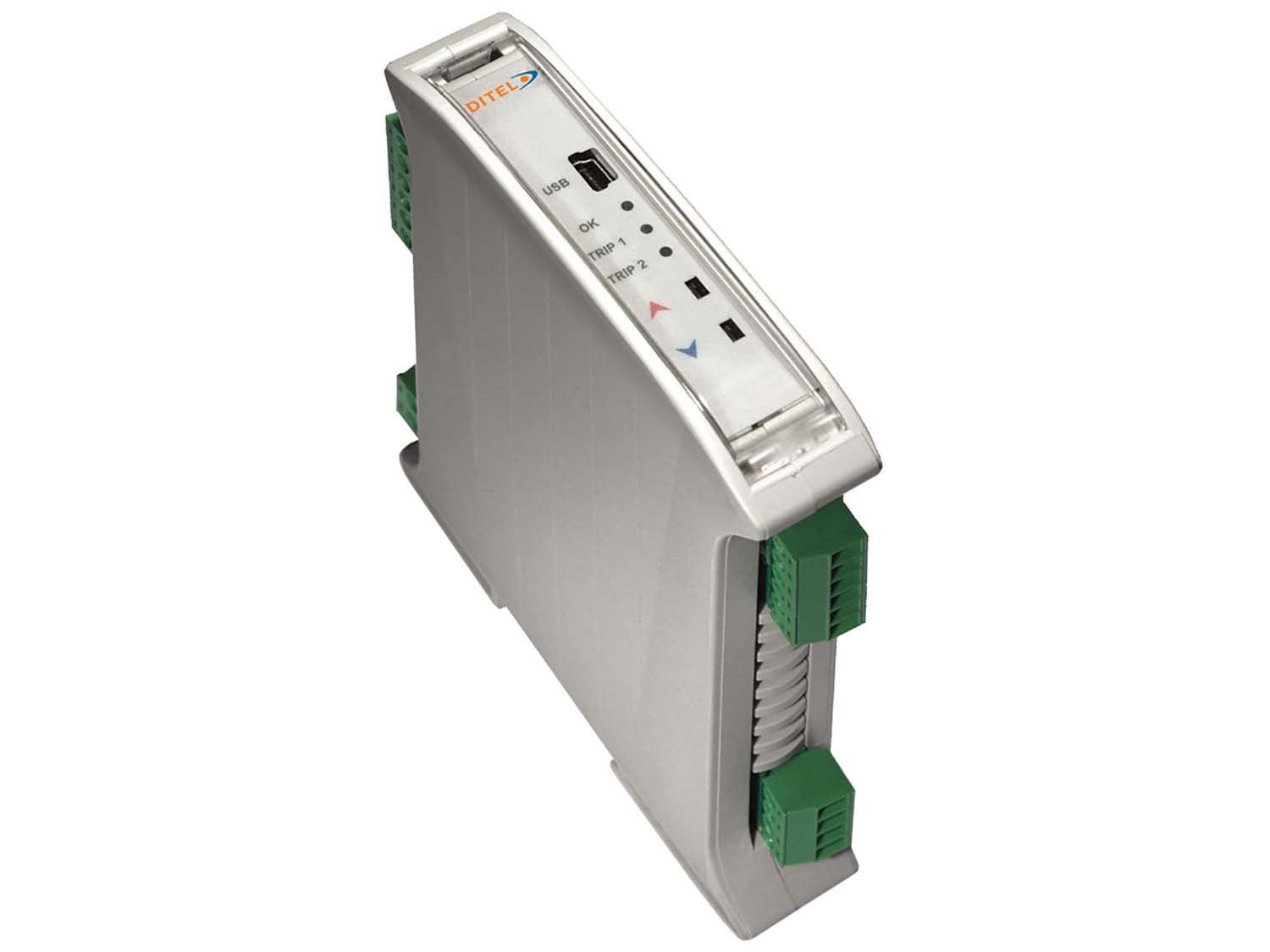

The KOS1720 is a dual channel signal conditioner designed to accept RTD, thermocouple or potentiometer sensors and provide isolated industrial process output signals in mA or volts.

Each output channel can be linked to an input sensor or to a mathematical function of both sensor signals.

This powerful feature allows the device to work in several different modes.

The output signal can also be set to all working ranges (0 to 20) mA or (0 to 10) V, to provide common or custom process signals.

KOS1720 is configured using free software that allows the user to configure the device without the need for calibration equipment.

Math functions on each channel can be configured using software as well as a 22-segment profile tool.

Input/output simulation tools are also available for diagnostic purposes.

  • TWO RTD, THERMOCOUPLE OR POTENTIOMETER INPUTS
  • ISOLATED VOLTAGE OR CURRENT OUTPUTS
  • ISOLATED UNIVERSAL AC / DC POWER SUPPLY
  • MATHEMATICAL TOOLS IN THE SOFTWARE
  • DIRECT CONFIGURATION VIA USB
Weight 0,219 kg
