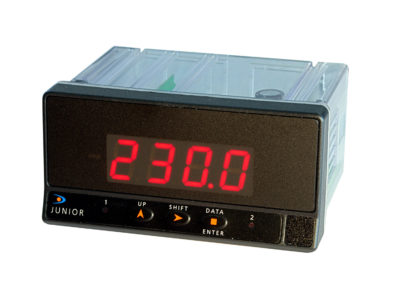

JUNIOR-C / JUNIOR20-C

Description

DIGITAL PANEL METER for the following input signals:
– LOAD CELL (±300mV, ±30mV)

JR-C and JR20-C models are specially designed for direct conection to load cells, they can be adapted to most existing cells in the market.
Easy to scale into desired engineering units, directly by frontal keys or real input signal value in teach mode.

Universal AC/DC voltage supply.

Fully configurables through 3 frontal keys, they allow signal input type selection and also provide a 5 or 10V DC and up to 30mA load current output for sensor excitation.

  • 4 digit indicator with 14mm digit and −9999 to 9999 display range for JR-C
  • 4 digit indicator with 20mm digit and −1999 to 9999 display range for JR20-C
  • Configurable decimal point for JR-C and JR20-C

Three frontal keys for configuration and 2 led for setpoints status indication (if output 2RE option card is installed).

Detection, saving, later recalling and resetting of maximum and minimum values reached by the input signal since last reset activation. Reset function sets automatically memorized value to current input signal value when maximum or minimum value are displayed.
Maximum and minimum values recalling to display and reset functions are directly available through frontal keys.
TARE and TARE RESET functions available through frontal key or through a logic (O.C) or contact switch input present at rear connector for a remote activation.

Additional information

Size KOSMOS

Resolution

Readings

Power Supply

Load Cell

Output options
